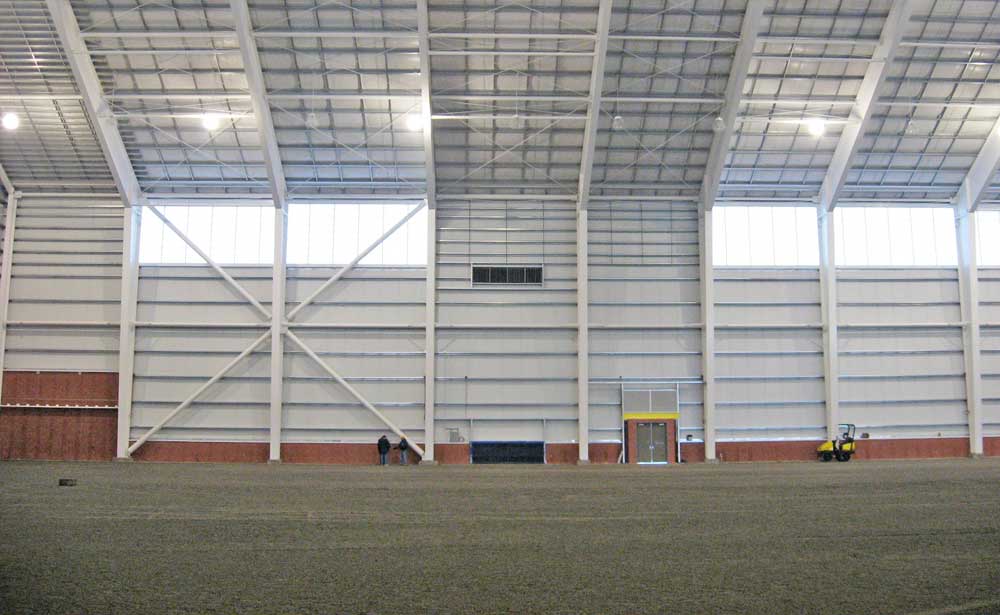

Application: | Football Practice Facility |
Location: | East Rutherford, NJ |
Building Square Footage: | 84,000 |
System Style & Quantity: | 1 Outdoor, ground-mounted Johnson Air-Rotation HVAC System |
Savings: | $600,000 in construction savings with lighter roof and ductwork elimination. |
Design
- With a building peak of 100’, the consulting engineer was very concerned with major stratification issues in the space.
- The customer did not want a noisy HVAC System.
- The team did not want to use ductwork that would interfere with kicking and punting drills or any equipment that would take up floor space or pose a danger on the sideline.
- With over 6,000,000 cubic feet of space to be heated, cooled and ventilated, adequate temperature distribution was a major concern.
Solution
- Installed one outdoor, ground-mounted system that ensured that no floor space would be used as well as eliminated the need for ductwork, solving two major issues.
- The customer also avoided adding costly structural support that would’ve been necessary, had they selected rooftop units.
- The Johnson Air-Rotation System used high-static, low-noise construction, premium prop fans, plus return and supply air sound attenuation in order to meet the engineer’s sound specifications.
- Johnson’s engineering team also designed the system to comply with the latest IBC code on wind, snow and seismic requirements.
Results
- The Johnson Air-Rotation System succeeded in maintaining the sound requirement.
- The football team also saved $600,000 in construction savings as a result of the lighter roof construction and the elimination of duct work.
- The Johnson Air-Rotation System is saving the customer over 50% of budgeted fuel costs and over 40% of budgeted electrical costs.
